Fail to connect to Orchestrator Web Service

Error Message

The same error may occur after applying SCORCH 2016 UR4 and later versions. See Tips and Tricks for Applying SCORCH 2016 UR4 and Later Versions.

Request Error

The server encountered an error processing the request. The exception message is ‘An error occurred while executing the command definition. See the inner exception for details.’. See Server logs for more details. The exception stack trace is:

at System.Data.EntityClient.EntityCommandDefinition.ExecuteStoreCommands(EntityCommand entityCommand, CommandBehavior behavior)
at System.Data.EntityClient.EntityCommandDefinition.Execute(EntityCommand entityCommand, CommandBehavior behavior)
at System.Data.EntityClient.EntityCommand.ExecuteReader(CommandBehavior behavior)
at System.Da.EntityCIient.EntityCommand.ExecuteScalar[T_Result](Func`2 resultSelector)
at System.Data.Objects.ObjectContext.ExecuteFunction(String functionName, ObjectParameter[] parameters)
at Microsoft.SystemCenter.Orchestrator.WebService.OrchestratorContext.ComputeAuthorizationCache(NuIlable`1 tokenld)
at Microsoft.SystemCenter.Orchestrator.WebService.OrchestratorContext.OnContextCreated()
at invoke_constructor()
at System.Data.Services.DataService`1.CreateProvider()
at System.Data.Services.DataService`1.HandleRequest()
at System.Data.Services.DataService`1.ProcessRequestForMessage(Stream messageBody)
at SynclnvokeProcessRequestForMessage(Object, Object[], Object[])
at System.ServiceModel.Dispatcher.SyncMethodInvoker.Invoke(Object instance, Object[] inputs, Object[]& outputs)
at System.ServiceModel.Dispatcher.DispatchOperationRuntime.InvokeBegin(MessageRpc& rpt)
at System.ServiceModel.Dispatcher.ImmutableDispatchRuntime.ProcessMessage5(MessageRpc& rpc)
at System.ServiceModel.Dispatcher.ImmutableDispatchRuntime.ProcessMessage31(MessageRpc& rpc)
at System.ServiceModel.Dispatcher.MessageRpC.Process(Boolean isOperationContextSet)at System.ServiceModel.Dispatcher.MessageRpC.Process(Boolean isOperationContextSet)

Troubleshooting

This error usually indicates some issues in the Orchestrator DB.

1. Ensure Orchestrator DB disk space is enough.
2. Run below queries on Orchestrator DB to ensure enough permission, and try again.

GRANT EXECUTE ON object::[Microsoft.SystemCenter.Orchestrator].[GetSecurityToken] TO [Microsoft.SystemCenter.Orchestrator.Operators]
GRANT SELECT ON object::[Microsoft.SystemCenter.Orchestrator.Internal].[Settings] TO [Microsoft.SystemCenter.Orchestrator.Operators]

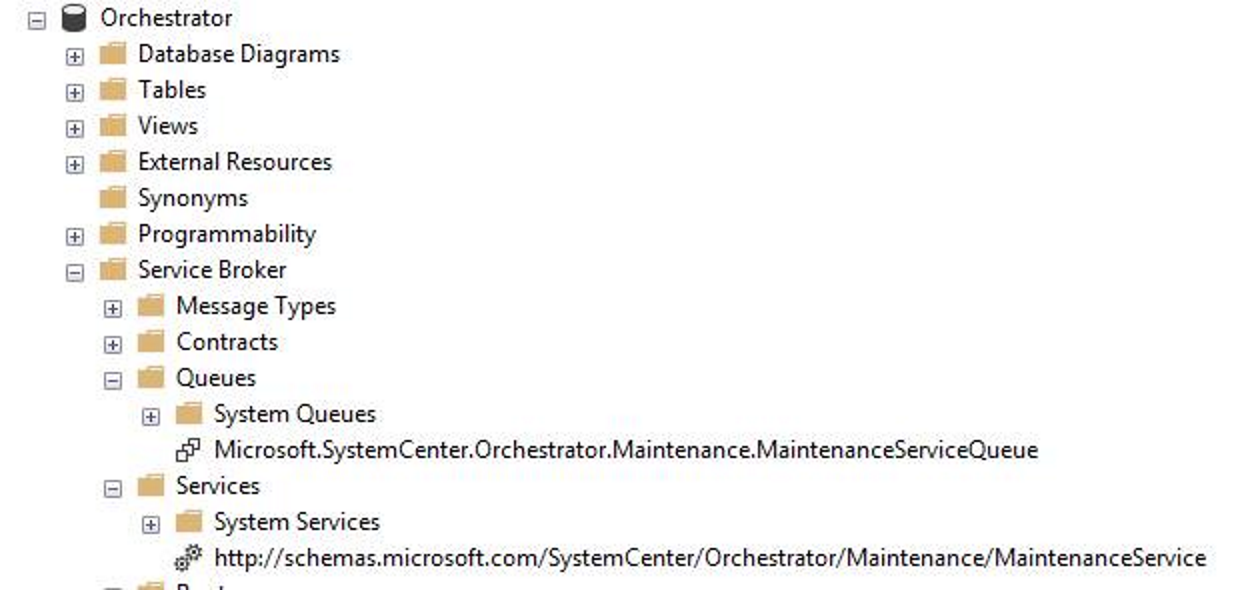

3. Check whether the service http://schemas.microsoft.com/SystemCenter/Orchestrator/Maintenance/MaintenanceService and queue [Microsoft.SystemCenter.Orchestrator.Maintenance].[MaintenanceServiceQueue] are there in Orchestrator DB. If they are missing, we need to create them manually.


4. If the issue only occurred recently and we have a backup of the Orchestrator DB prior to this issue, we can restore the backup as a quick solution.

Log Analysis

Use procdump to display the exception.

Procdump -e 1 -f "" <PID of w3wp.exe>

Below is an example output.

[00:28:10] Exception: E0434F4D.System.Configuration.ConfigurationErrorsException (“This element is not currently associated with any context”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The SELECT permission was denied on the object ‘Settings’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator.Internal’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The SELECT permission was denied on the object ‘Settings’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator.Internal’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The SELECT permission was denied on the object ‘Settings’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator.Internal’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The SELECT permission was denied on the object ‘Settings’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator.Internal’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The EXECUTE permission was denied on the object ‘GetSecurityToken’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The EXECUTE permission was denied on the object ‘GetSecurityToken’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The EXECUTE permission was denied on the object ‘GetSecurityToken’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator’.”)
[00:28:10] Exception: E0434F4D.System.Data.SqlClient.SqlException (“The EXECUTE permission was denied on the object ‘GetSecurityToken’, database ‘Orchestrator’, schema ‘Microsoft.SystemCenter.Orchestrator’.”)
[00:28:10] Exception: E0434F4D.System.Data.EntityCommandExecutionException (“An error occurred while executing the command definition. See the inner exception for details.”)
[00:28:10] Exception: E0434F4D.System.Data.EntityCommandExecutionException (“An error occurred while executing the command definition. See the inner exception for details.”)
[00:28:10] Exception: E0434F4D.System.Data.EntityCommandExecutionException (“An error occurred while executing the command definition. See the inner exception for details.”)
[00:28:10] Exception: E0434F4D.System.Data.EntityCommandExecutionException (“An error occurred while executing the command definition. See the inner exception for details.”)
[00:28:10] Exception: E0434F4D.System.Data.EntityCommandExecutionException (“An error occurred while executing the command definition. See the inner exception for details.”)

In this example, the solution will be as shown in Troubleshooting – 2.
